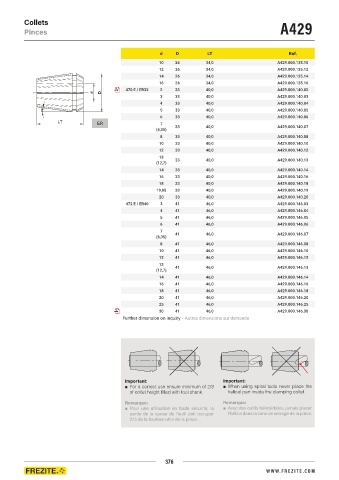

Collets A429
Pinces

d D LT Ref.
10 26 34,0 A429.000.135.10
12 26 34,0 A429.000.135.12
14 26 34,0 A429.000.135.14
16 26 34,0 A429.000.135.16
470 E / ER32 2 33 40,0 A429.000.140.02
3 33 40,0 A429.000.140.03
4 33 40,0 A429.000.140.04
5 33 40,0 A429.000.140.05
6 33 40,0 A429.000.140.06
ER 7
(6,35) 33 40,0 A429.000.140.07
8 33 40,0 A429.000.140.08
10 33 40,0 A429.000.140.10
12 33 40,0 A429.000.140.12
13
(12,7) 33 40,0 A429.000.140.13
14 33 40,0 A429.000.140.14
16 33 40,0 A429.000.140.16
18 33 40,0 A429.000.140.18
19,05 33 40,0 A429.000.140.19
20 33 40,0 A429.000.140.20
472 E / ER40 3 41 46,0 A429.000.146.03
4 41 46,0 A429.000.146.04
5 41 46,0 A429.000.146.05
6 41 46,0 A429.000.146.06
7
(6,35) 41 46,0 A429.000.146.07
8 41 46,0 A429.000.146.08
10 41 46,0 A429.000.146.10
12 41 46,0 A429.000.146.12
13
(12,7) 41 46,0 A429.000.146.13
14 41 46,0 A429.000.146.14
16 41 46,0 A429.000.146.16
18 41 46,0 A429.000.146.18
20 41 46,0 A429.000.146.20
25 41 46,0 A429.000.146.25
30 41 46,0 A429.000.146.30
Further dimension on inquiry - Autres dimensions sur demande

Important: Important:
Ŷ For a correct use ensure minimum of 2/3 Ŷ When using spiral tools never place the
OF COLLET HEIGHT lLLED WITH TOOL SHANK helical part inside the clamping collet.

Remarque: Remarque:
Ŷ Pour une utilisation en toute sécurité, la Ŷ Avec des outils hélicoïdales, jamais placer
partie de la queue de l’outil doit occuper l’hélice dans la zone de serrage de la pince.
2/3 de la hauteur utile de la pince.
