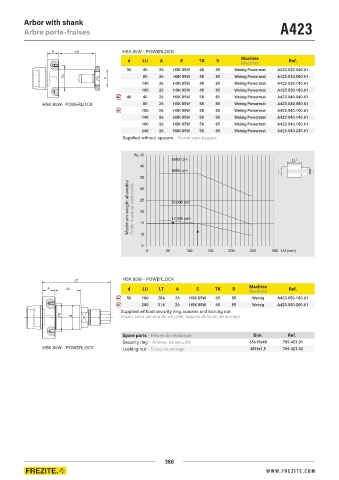

Arbor with shank A423
Arbre porte-fraises

LU HSK 85W - POWERLOCK
Machine
d LU A S TK D Ref.
Machine
30 40 26 HSK 85W 48 85 Weinig Powermat A423.030.040.61
80 26 HSK 85W 48 85 Weinig Powermat A423.030.080.61
140 26 HSK 85W 48 85 Weinig Powermat A423.030.140.61
180 26 HSK 85W 48 85 Weinig Powermat A423.030.180.61
40 40 26 HSK 85W 58 85 Weinig Powermat A423.040.040.61
HSK 85W- POWERLOCK 80 26 HSK 85W 58 85 Weinig Powermat A423.040.080.61
100 26 HSK 85W 58 85 Weinig Powermat A423.040.100.61
140 26 HSK 85W 58 85 Weinig Powermat A423.040.140.61
180 26 HSK 85W 58 85 Weinig Powermat A423.040.180.61
240 26 HSK 85W 58 85 Weinig Powermat A423.040.240.61
Supplied without spacers - Fourni sans bagues

Kg 45
6000 rpm LU
40
8000 rpm
35
Maximum weight allowable Poids maximal admissible 25 10.000 rpm
30

20
12.000 rpm
15

10
5
0 50 100 150 200 250 300 LU (mm)

LT HSK 85W - POWERLOCK
Machine
LU d LU LT A S TK D Ref.
Machine
50 180 284 26 HSK 85W 65 85 Weinig A423.050.180.61
200 314 26 HSK 85W 65 85 Weinig A423.050.200.61
Supplied without security ring, spacers and locking nut
d Fourni sans anneau de sécurité, bagues et écrou de serrage

Spare parts - Pièces de rechange Dim. Ref.
Security ring - Anneau de sécurité 65x15x40 709.423.01
HSK 85W - POWERLOCK Locking nut - Écrou de serrage M33x1,5 709.423.02

380
