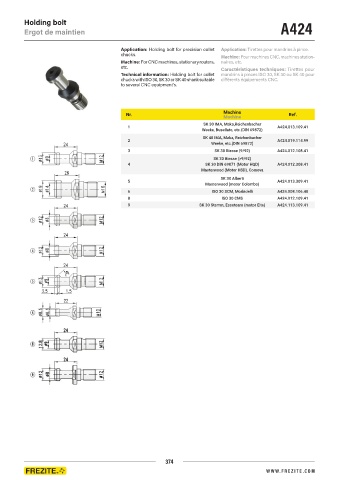

Holding bolt A424
Ergot de maintien

Application: Holding bolt for precision collet Application: Tirettes pour mandrins à pince.
chucks.
Machine: Pour machines CNC, machines station-
Machine: For CNC machines, stationary routers, naires, etc.
etc.
Caractéristiques techniques: Tirettes pour
Technical information: Holding bolt for collet mandrins à pinces ISO 30, SK 30 ou SK 40 pour
chucks with ISO 30, SK 30 or SK 40 shank suitable différents équipements CNC.
to several CNC equipment’s.

Nr. Machine Ref.
Machine
SK 30 IMA, Maka,Reichenbacher
1 A424.013.109.41
Weeke, Busellato, etc.(DIN 69872)
SK 40 IMA, Maka, Reichenbacher
2 A424.019.114.99
Weeke, etc.(DIN 69872)
3 SK 30 Biesse (9/92) A424.012.108.41
SK 30 Biesse (>9/92)
4 SK 30 DIN 69871 (Motor HQD) A424.012.308.41
Masterwood (Motor HSD), Comeva
SK 30 Alberti
5 A424.013.309.41
Masterwood (motor Colombo)
6 ISO 30 SCM, Morbidelli A424.008.106.40
8 ISO 30 CMS A424.912.109.41
9 SK 30 Stemm, Esseteam (motor Elte) A424.113.109.41
