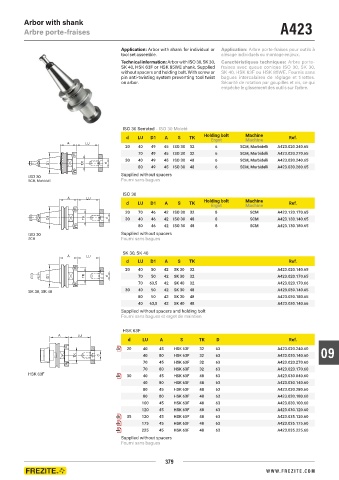

Arbor with shank A423
Arbre porte-fraises

Application: Arbor with shank for individual or Application: Arbre porte-fraises pour outils à
tool set assemble. alésage individuels ou montage en jeux.
Technical information: Arbor with ISO 30, SK 30, Caractéristiques techniques: Arbre porte-
SK 40, HSK 63F or HSK 85WE shank. Supplied fraises avec queue conique ISO 30, SK 30,
without spacers and holding bolt. With screw or SK 40, HSK 63F ou HSK 85WE. Fournis sans
pin anti-twisting system preventing tool twist bagues intercalaires de réglage et tirettes.
on arbor. Sécurité de rotation par goupilles et vis, ce qui
empêche le glissement des outils sur l’arbre.

ISO 30 Serrated - ISO 30 Moleté
Holding bolt Machine
d LU D1 A S TK Ergot Machine Ref.
LU
20 40 49 45 ISO 30 32 6 SCM, Morbidelli A423.020.240.65
70 49 45 ISO 30 32 6 SCM, Morbidelli A423.020.270.65
30 40 49 45 ISO 30 48 6 SCM, Morbidelli A423.030.240.65
D1
80 49 45 ISO 30 48 6 SCM, Morbidelli A423.030.280.65
ISO 30 Supplied without spacers
SCM, Morbidelli Fourni sans bagues

ISO 30
LU
d LU D1 A S TK Holding bolt Machine Ref.
Ergot Machine
20 70 46 42 ISO 30 32 8 SCM A423.120.170.65
D1 30 40 46 42 ISO 30 48 8 SCM A423.130.140.65
80 46 42 ISO 30 48 8 SCM A423.130.180.65
ISO 30 Supplied without spacers
SCM Fourni sans bagues

SK 30, SK 40
LU
d LU D1 A S TK Ref.
20 40 50 42 SK 30 32 A423.020.140.65
D1 70 50 42 SK 30 32 A423.020.170.65
70 63,5 42 SK 40 32 A423.020.170.66
SK 30, SK 40 30 40 50 42 SK 30 48 A423.030.140.65
80 50 42 SK 30 48 A423.030.180.65
40 63,5 42 SK 40 48 A423.030.140.66
Supplied without spacers and holding bolt
Fourni sans bagues et ergot de maintien

HSK 63F
LU
d LU A S TK D Ref.
20 40 45 HSK 63F 32 63 A423.020.240.60 09
40 80 HSK 63F 32 63 A423.020.140.60
70 45 HSK 63F 32 63 A423.020.270.60
70 80 HSK 63F 32 63 A423.020.170.60
HSK 63F 30 40 45 HSK 63F 48 63 A423.030.040.60
40 80 HSK 63F 48 63 A423.030.140.60
80 45 HSK 63F 48 63 A423.030.280.60
80 80 HSK 63F 48 63 A423.030.180.60
100 45 HSK 63F 48 63 A423.030.100.60
120 45 HSK 63F 48 63 A423.030.120.60
35 120 45 HSK 63F 48 63 A423.035.120.60
175 45 HSK 63F 48 63 A423.035.175.60
225 45 HSK 63F 48 63 A423.035.225.60
Supplied without spacers
Fourni sans bagues

379
