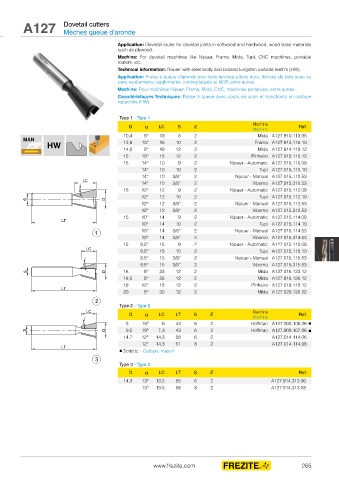

A123/A124 Dovetail cutters A127 Dovetail cutters
Mèches queue d’aronde
Mèches queue d’aronde
Application: Dovetail router for dovetail joints in softwood and hardwood, wood base materials
such as plywood.
Machine: For dovetail machines like Nipuer, Frama, Mida, Tupi, CNC machines, portable
routers, etc.
Technical information: Router with steel body and brazed tungsten carbide teeth’s (HW).
Application: Fraise à queue d’aronde pour bois tendres a bois durs, dérivés du bois avec ou
sans revêtements: agglomérés, contreplaqués et MDF, entre autres.
Machine: Pour machines Nipuer, Frama, Mida, CNC, machines portatives, entre autres.
Caractéristiques Techniques: Fraise à queue avec corps en acier et tranchants en carbure
rapportés (HW).

Type 1 - Type 1
D α LC S Z Machine Ref.
Machine
10,4 8° 13 8 2 Mida A127.910.113.08
MAN
HW 13,8 10º 16 10 2 Frama A127.913.116.10
14,8 8° 19 12 2 Mida A127.914.119.12
15 10° 15 12 2 Pinheiro A127.015.115.12
15 14° 10 9 2 Nipuer - Automatic A127.015.110.09
14° 10 10 2 Tupi A127.015.110.10
14° 10 3/8” 2 Nipuer - Manual A127.015.110.53
14° 10 3/8” 2 Vibemo A127.015.310.53
15 12° 12 9 2 Nipuer - Automatic A127.015.112.09
12° 12 10 2 Tupi A127.015.112.10
12° 12 3/8” 2 Nipuer - Manual A127.015.112.53
12° 12 3/8” 2 Vibemo A127.015.312.53
15 10° 14 9 2 Nipuer - Automatic A127.015.114.09
10° 14 10 2 Tupi A127.015.114.10
10° 14 3/8” 2 Nipuer - Manual A127.015.114.53
10° 14 3/8” 2 Vibemo A127.015.314.53
15 9,5° 15 9 2 Nipuer - Automatic A127.015.115.09
9,5° 15 10 2 Tupi A127.015.115.10
9,5° 15 3/8” 2 Nipuer - Manual A127.015.115.53
9,5° 15 3/8” 2 Vibemo A127.015.315.53
16 8° 23 12 2 Mida A127.016.123.12
18,5 8° 26 12 2 Mida A127.918.126.12
19 12° 18 12 2 Pinheiro A127.019.118.12
20 8° 30 12 2 Mida A127.020.130.12

Type 2 - Type 2
D α LC LT S Z Machine Ref.
Machine
8 18º 6 43 6 2 Hoffman A127.008.106.06 ■
9,5 19º 7,3 43 6 2 Hoffman A127.909.107.06 ■
14,7 12° 14,3 58 6 2 A127.014.114.06
12° 14,3 61 8 2 A127.014.114.08
■ Solid tc - Carbure massif

Type 3 - Type 3
D α LC LT S Z Ref.
14,3 13º 13,5 55 6 2 A127.914.313.06
13º 13,5 58 8 2 A127.914.313.08

www.frezite.com 265
