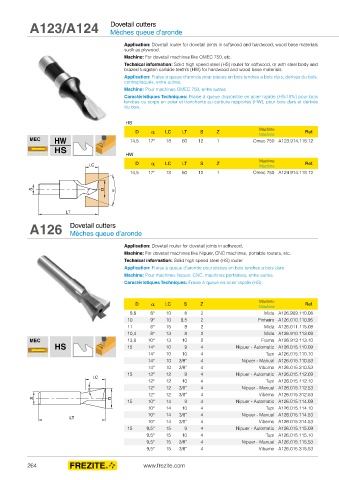

A123/A124 Dovetail cutters
Mèches queue d’aronde

Application: Dovetail router for dovetail joints in softwood and hardwood, wood base materials
such as plywood.
Machine: For dovetail machines like OMEC 750, etc.
Technical information: Solid high speed steel (HS) router for softwood, or with steel body and
brazed tungsten carbide teeth’s (HW) for hardwood and wood base materials.
Application: Fraise à queue d’aronde pour pièces en bois tendres a bois durs, dérivés du bois:
contreplaqués, entre autres.
Machine: Pour machines OMEC 750, entre autres.
Caractéristiques Techniques: Fraise à queue disponible en acier rapide (HS-18%) pour bois
tendres ou corps en acier et tranchants au carbure rapportés (HW), pour bois durs et dérivés
du bois.

HS
D α LC LT S Z Machine Ref.
Machine
MEC HW 14,5 17º 18 60 12 1 Omec 750 A123.914.118.12
HS
HW
D α LC LT S Z Machine Ref.
Machine
14,5 17º 18 60 12 1 Omec 750 A124.914.118.12

A126 Dovetail cutters
Mèches queue d’aronde

Application: Dovetail router for dovetail joints in softwood.
Machine: For dovetail machines like Nipuer, CNC machines, portable routers, etc.
Technical information: Solid high speed steel (HS) router.
Application: Fraise à queue d’aronde pour pièces en bois tendres a bois durs.
Machine: Pour machines Nipuer, CNC, machines portatives, entre autres.
Caractéristiques Techniques: Fraise à queue en acier rapide (HS).

D α LC S Z Machine Ref.
Machine
9,8 8° 10 8 2 Mida A126.909.110.08
10 9° 10 9,5 2 Pinheiro A126.010.110.95
11 8° 15 8 2 Mida A126.011.115.08
10,4 8° 13 8 2 Mida A126.910.113.08
MEC 13,8 10° 13 10 2 Frama A126.913.113.10
HS 15 14° 10 9 4 Nipuer - Automatic A126.015.110.09
14° 10 10 4 Tupi A126.015.110.10
14° 10 3/8” 4 Nipuer - Manual A126.015.110.53
14° 10 3/8” 4 Vibemo A126.015.310.53
15 12° 12 9 4 Nipuer - Automatic A126.015.112.09
12° 12 10 4 Tupi A126.015.112.10
12° 12 3/8” 4 Nipuer - Manual A126.015.112.53
12° 12 3/8” 4 Vibemo A126.015.312.53
15 10° 14 9 4 Nipuer - Automatic A126.015.114.09
10° 14 10 4 Tupi A126.015.114.10
10° 14 3/8” 4 Nipuer - Manual A126.015.114.53
10° 14 3/8” 4 Vibemo A126.015.314.53
15 9,5° 15 9 4 Nipuer - Automatic A126.015.115.09
9,5° 15 10 4 Tupi A126.015.115.10
9,5° 15 3/8” 4 Nipuer - Manual A126.015.115.53
9,5° 15 3/8” 4 Vibemo A126.015.315.53
