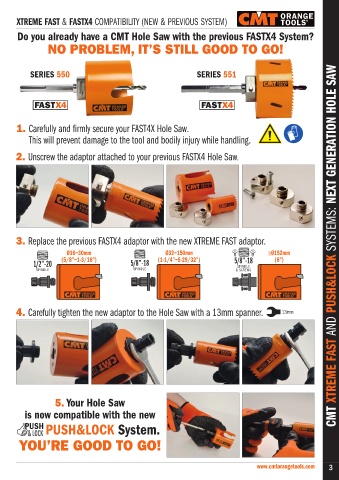

XTREME FAST & FASTX4 COMPATIBILITY (NEW & PREVIOUS SYSTEM)
       Do you already have a CMT Hole Saw with the previous FASTX4 System?

                  NO PROBLEM, IT’S STILL GOOD TO GO!




            SERIES 550                                                SERIES 551





             FASTX4                                                     FASTX4



       1. Carefully and firmly secure your FAST4X Hole Saw.
         This will prevent damage to the tool and bodily injury while handling.



       2. Unscrew the adaptor attached to your previous FASTX4 Hole Saw.
















       3. Replace the previous FASTX4 adaptor with the new XTREME FAST adaptor.                                        CMT XTREME FAST AND PUSH&LOCK SYSTEMS: NEXT GENERATION HOLE SAW
                        Ø16~30mm                           Ø32~150mm                           ≥Ø152mm
                       (5/8”~1-3/16”)                    (1-1/4”~5-29/32”)         5/8”-18        (6”)
             1/2”-20                           5/8”-18                              SPINDLE
              SPINDLE                           SPINDLE                             & SCREWS






       4. Carefully tighten the new adaptor to the Hole Saw with a 13mm spanner.                    13mm


















                    5. Your Hole Saw

          is now compatible with the new
               PUSH&LOCK System.
          PUSH
            & LOCK
        YOU’RE GOOD TO GO!



                                                                                           www.cmtorangetools.com    3
